商品概要

PRO3・6・9 オーディオ・システム・エンジン

◆19.2/24/28.8 Giga flopsデジタルオーディオ処理能力を持つオーディオ・システム・エンジン
◆Copper及びFiberケーブルによる192ch双方向HyperMACルーター
◆40 bit floating point processing with 96 kHz sample rate
◆96kHzサンプリング・レート、40bitフローティング・ポイント・プロセッシング
◆信頼性を強化するためにコントロール・センターとの二重化接続
◆スネーク接続は、Fiberで最大500m、Cat5eで最大100mまで可能
◆5/6/7つのDSPカードを標準としたN+1リダンダント
◆Neutrik etherCONを採用した、AES50とEthernet controlネットワーク・ポート
◆Dual-fibre Neutrik opticalCON DUOを使ったオプティカル・ファイバー・スネーク
◆耐久性のある7Uラックマウント・シャーシ
◆N+1リダンダント機能を持つ3つのオートレンジ・ユニバーサル・スイッチ-モード・パワーサプライ
◆イギリスでのデザイン・設計

イントロダクション

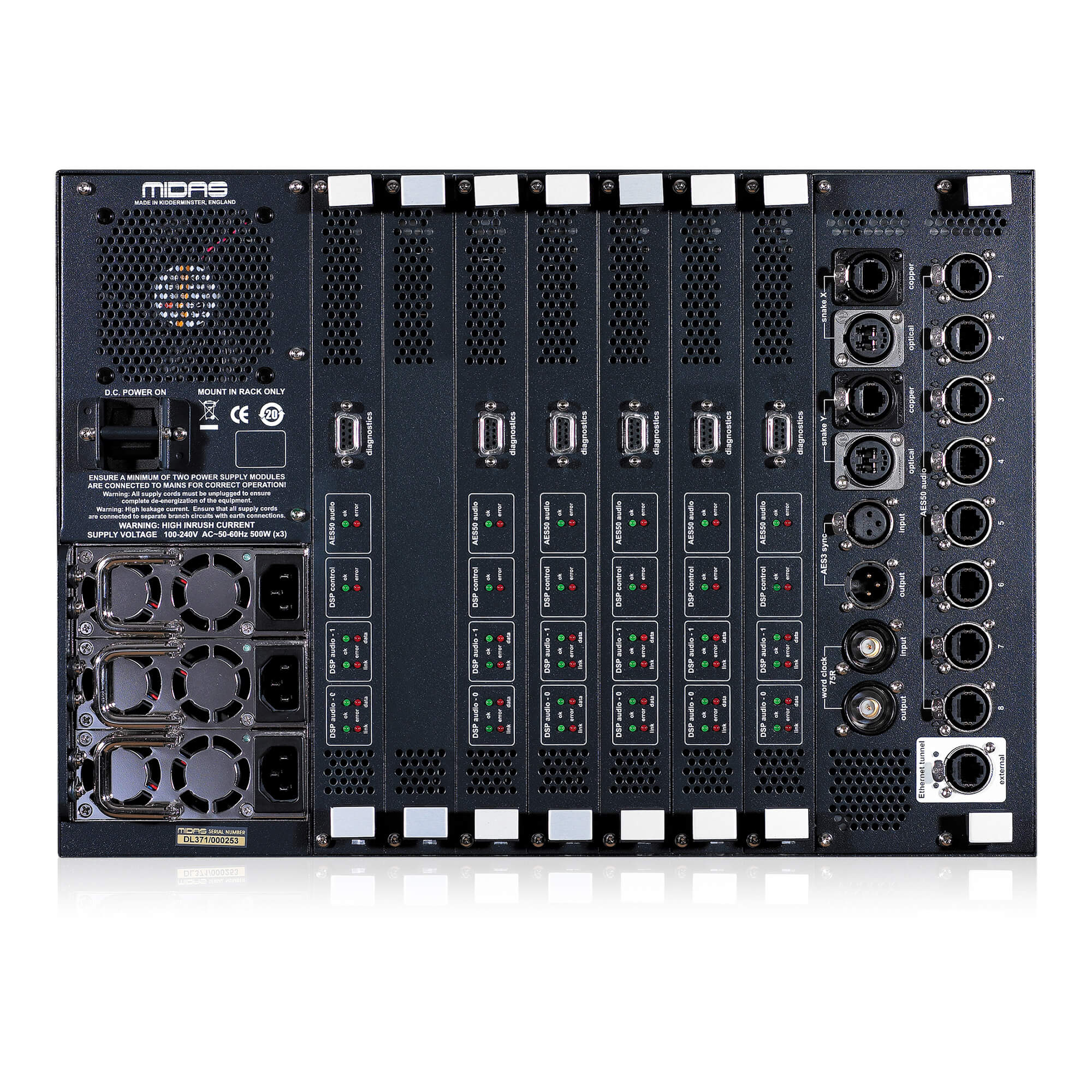

PRO3/6/9 シリーズのプロセッシング・エンジンは7U、19 インチラックマウントのユニットで、先進のFPGA アーキテクチャを使用した音声処理モジュールとルーティングのハードウェアを収納しています。また、3 つの自動電圧検知電源は、そのうちの2 つでも安全に動作します。DSP モジュールはリダンダント予備モジュールとして標準化されており、緊急時のバックアップとして自動で切り替わります。

スペック

System inputs and outputs
◆System connector
8 x AES50 (24 channels of bi-directional digital audio) on EtherCon XLR
◆N+1 connector
AES50 (24 channels of bi-directional digital audio) on EtherCon XLR providing dual redundant back up
◆Snake connector (copper)
Sony HyperMac (192 channels of bi-directional digital audio) on EtherCon XLR
◆Duplicate snake connector(copper)
Sony HyperMac (192 channels of bi-directional digital audio) on EtherCon XLR
◆Snake connector (fibre)
Sony HyperMac (192 channels of bi-directional digital audio) on EtherCon XLR
◆Duplicate snake connector(fibre)
Sony HyperMac (192 channels of bi-directional digital audio) on OpticalCon XLR

Miscellaneous inputs and outputs
◆Word clock IN connector
BNC
◆Word clock OUT connector
BNC
◆AES3 Sync IN connector
3-pin XLR
◆AES3 Sync OUT connector
3-pin XLR
◆Ethernet tunnel connector
EtherCon XLR

◆Dimensions
7U x 410 mm deep
◆Net weight
30 kg
◆AC requirements
100V to 240V, 50 to 60Hz
◆Power requirements
500W x 2 (minimum)
◆Operating temperature range
+5°C to +40°C
◆Storage temperature range
-20°C to +60°C
