商品概要
88ch入力・35ミックスバス・96kHzサンプリングレート
◆288入力 × 294出力(最大容量)、ネットワーク内のどこにでも point-to-point ルーティングが可能
◆80プライマリ入力
◆8 リターン入力
◆最大104ch同時ミックスが可能
◆16 Group/Aux + 16 Matrix 又は モニターミックスでは 32 Mixが可能
◆35 ミックス・バス
◆10 VCA
◆6 POPグループ
◆8 エフェクタ・ディバイス
◆最大36 KT グラフィックEQ オプションで DN9331 Rapideからコントロールが可能
◆エリアBの設定によりデュアル・オペレーターでの操作が容易
◆サーフェス に3つの設定可能なI/Oカードスロートを装備。
◆デュアル・リダンダント HyperMac (192×192) CAT5-e デジタル・スネーク
◆ファイバーオプティカル接続
イントロダクション

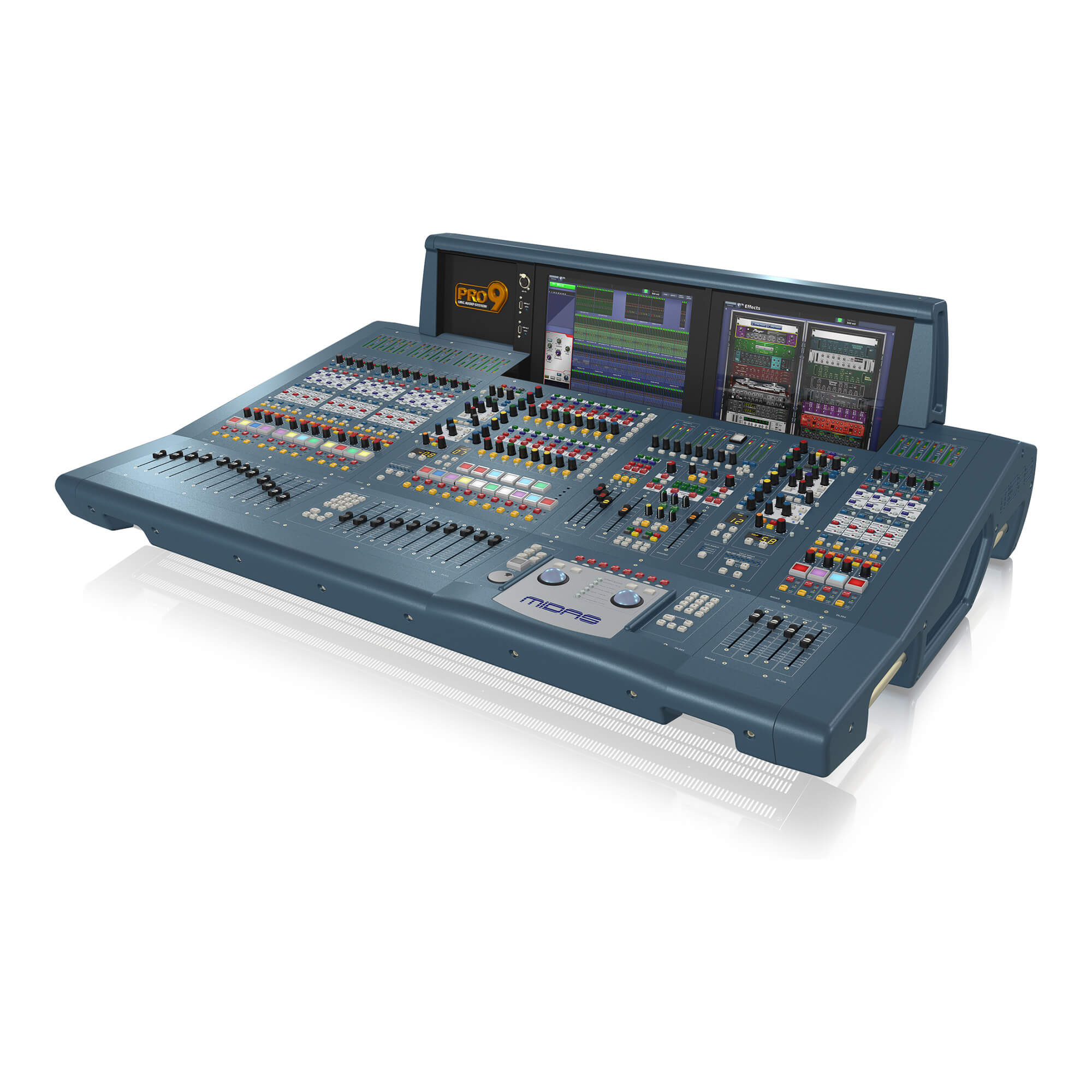

マイダスPRO9は、マイダスPRO Seriesの最上位モデルです。88chの入力と35バスを持ち、2つのステージボックスから構成され最大200m間隔、FOHから500mに配置できる柔軟性を提供します。
PRO9はDL251などあらゆるマイダスデジタルI/Oボックスや各チャンネルに3つのマイクプリアンプと二重化されたデジタルネットワーク接続を持つ、DL431 24ch 5-wayマイクスプリッタの接続により更に価値を高めます。またMADIやDanteとの接続を提供するKLARK TEKNIK DN9650デジタルフォーマットコンバータを加えることによって、さらに用途の幅は広がります。
マイダスPRO9は、世界中の人々に愛され続けてきた、伝統のマイダスサウンドを継承しています。それはマイダス・アナログコンソールのルーツを受け継いでおり、フェーダのレイヤーやページの障害のないVCAとPOPグループ(ユーザーを直観的にナビゲートする)を含みます。
また、非常に高く評価されたXL8・PRO6のコンプレッサースタイルと同じダイナミックスとエフェクタは幅広い用途でその機能を発揮します。
拡張可能なモジュールIOボックスを接続することで、システムをどのような用途にでも対応できるようにアップグレードすることが可能です。
スペック
◆Input audio processing
80 x Dual slope high and low pass filters
88 x 4-band parametric EQs (includes 8 returns) with 3 shelf modes
80 x 5-mode creative input compressors
80 x Input gates
◆Mix/output audio processing
35 x Output 5-band parametric EQ with shelf and multiple high and low pass modes
35 x 5-mode creative output dynamics
8 x Assignable Klark Teknik output GEQs
◆Assignable audio processing
8 x assignable stereo effects(each can be reconfigured to generate 4 additional GEQs,
making a total of 36 available on the control centre)
◆Mixing control assistance
8 x auto-mutes
6 x surface population groups
10 x VCA faders
10 x VCA associated population groups
1000-scene snapshot automation
◆Resilience
N+1 and fault tolerant modular system with dual redundant system interconnections
◆Sampling frequency
96kHz
◆Latency delay
<2ms input to master (no compensation)
◆Dynamic range
110dB, 22Hz to 22kHz (no pre-emphasis)
◆Maximum voltage gain
80dB inputs to subgroups and masters
86dB inputs to aux and matrix
◆Crosstalk at 1kHz
-100dB physically adjacent input channels
◆Crosstalk at 10kHz
-100dB physically adjacent input channels
◆Fader/pan cut off at 1kHz
-100dB
◆Fader/pan cut off at 10kHz
-100dB
◆Display screens
2 x 15” daylight-viewable colour screens
◆LCD switch
33 x RGB colour
◆Motorised faders
29 x touch-sensitive
◆Fader resolution
1024 steps
◆Encoders
102 x touch-sensitive
◆Encoder resolution
512 steps
◆Dimensions
PRO Series Control Centre: 1300 x 1000 x 400 mm
◆Net weight
Control centre: 120 kg
◆Power requirements
100V to 240V, 50 to 60Hz
◆Operating temperature range
+5°C to +40°C
◆Storage temperature range
-20°C to +60°C
